Evaluation method for effect of subgrade weak zone distribution on mechanical performance of pavement based on BIM and intelligent compaction
Article Text (Baidu Translation)
-

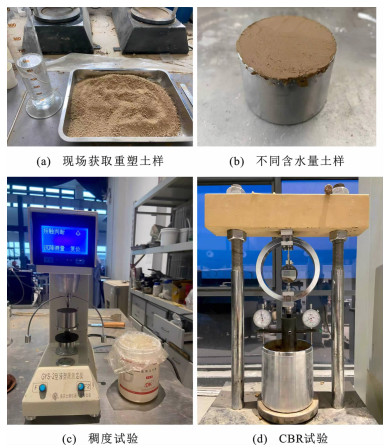

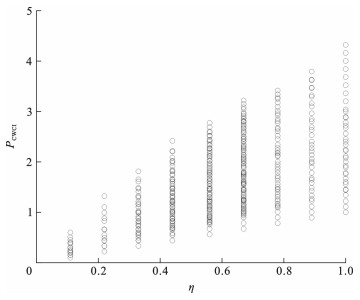

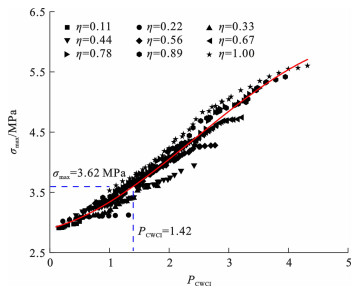

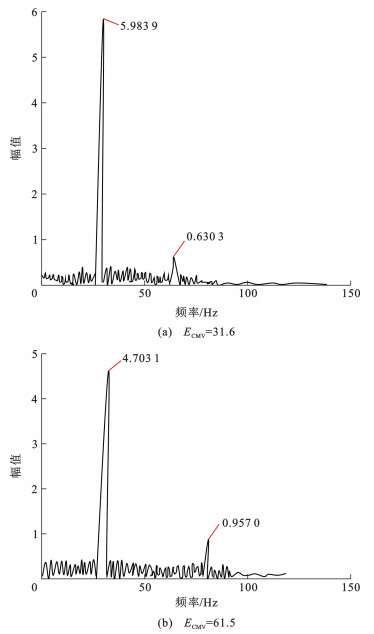

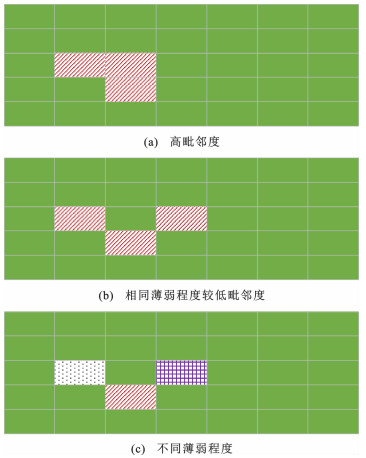

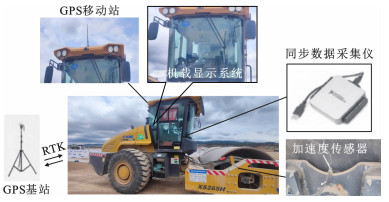

摘要: 为了量化道基压实度空间分布特征及其对道面力学性能的影响，本文对机场智能压实工程进行分析，建立了建筑信息模型(BIM)与智能压实信息融合应用框架，提出了评价道基压实空间分布的压实薄弱综合指数; 通过道基土体加州承载比试验，分析压实计值与道基反应模量的关系; 建立三维有限元数值分析模型，探究压实度空间分布对机场道面力学性能的影响; 最后形成基于BIM模型的智能压实-道面结构力学性能一体化分析方法。研究结果表明：相同压实薄弱区面积比下的薄弱区毗邻度指标可相差2.5倍，压实薄弱综合指数可反映压实通过率、压实薄弱程度、薄弱区空间分布的综合影响，压实薄弱综合指数随压实薄弱区面积比的增加而增大，离散程度也逐步增加; 道基反应模量与压实计值呈幂指数增长关系; 道面弯拉应力最大值随压实薄弱综合指数的增加而增大，且可用三次多项式进行描述; 通过参数化BIM建模、属性信息扩展、可视化编程、智能压实数据与BIM数据融合、BIM-力学模型一体化分析，实现依据智能压实数据、道面结构几何数据及机型荷载数据对运行期道面结构应力与服役寿命进行动态分析，从而提升道基压实水平。研究成果对扩展智能压实数据的价值、实现场道工程智能建造-运维一体化分析具有参考意义。Abstract: To quantify the spatial distribution characteristics of compactness and their effects on pavement mechanical performance, an airport intelligent compaction project was analyzed, an application framework for the information fusion between building information model (BIM) and intelligent compaction was established, and a compaction weakness composite index for evaluating the spatial distribution of subgrade compaction was proposed. Through California bearing ratio tests on subgrade soil, the relationship between the compaction meter value and the subgrade reaction modulus was analyzed. A three-dimensional finite element numerical analysis model was established to investigate the effect of the spatial distribution of compactness on the mechanical performance of airport pavement. Finally, an integrated analysis method for intelligent compaction and pavement structure mechanical performance based on the BIM model was developed. The results indicate that under the same area ratio of compaction weak zones, the adjacency index of weak zones can differ by 2.5 times; the compaction weakness composite index can reflect the comprehensive effect of compaction pass rate, compaction weakness degree, and spatial distribution of weak zones; the compaction weakness composite index increases with the increase of the area ratio of compaction weak zones, and the degree of dispersion also gradually increases. Furthermore, the subgrade reaction modulus exhibits a power exponential growth relationship with the compaction meter value. The maximum flexural-tensile stress of the pavement increases with the increase of the compaction weakness composite index, and this relationship can be described by a cubic polynomial. Through parametric BIM modeling, attribute information extension, visual programming, fusion of intelligent compaction data and BIM data, and integrated analysis of BIM and mechanical model, the dynamic analysis of pavement structure stress and service life during the operation period can be realized based on intelligent compaction data, pavement structure geometric data, and aircraft load data, thereby improving the subgrade compaction level. The research results provide a reference for expanding the value of intelligent compaction data and realizing the integrated analysis of intelligent construction and operation-maintenance of airport pavement engineering.
-

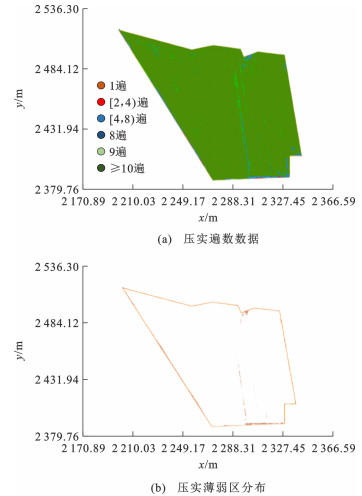

图 2 智能压实获取的压实数据空间分布
Figure 2. Space distribution of compaction data based on intelligent compaction

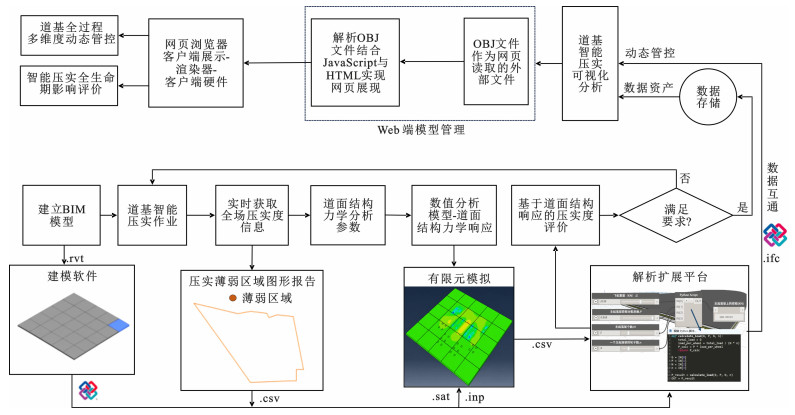

图 3 BIM与智能压实融合应用框架
Figure 3. Integrated application framework of BIM and intelligent compaction

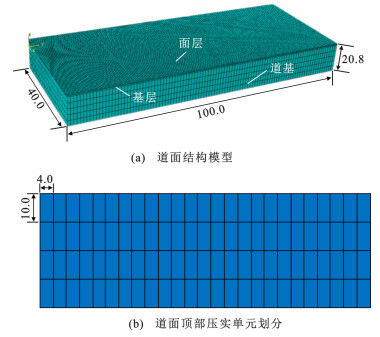

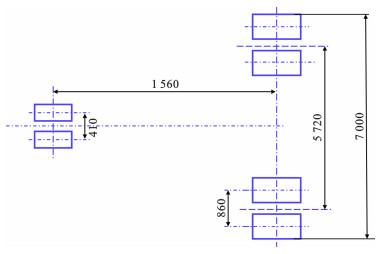

图 11 B737-800起落架构型(单位：mm)
Figure 11. Landing gear configuration of B737-800 (unit: mm)

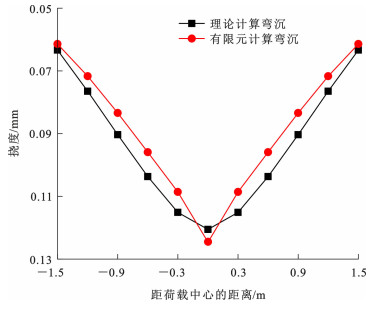

图 12 数值分析模型解与理论解对比
Figure 12. Comparison between numerical analysis model and theoretical solution

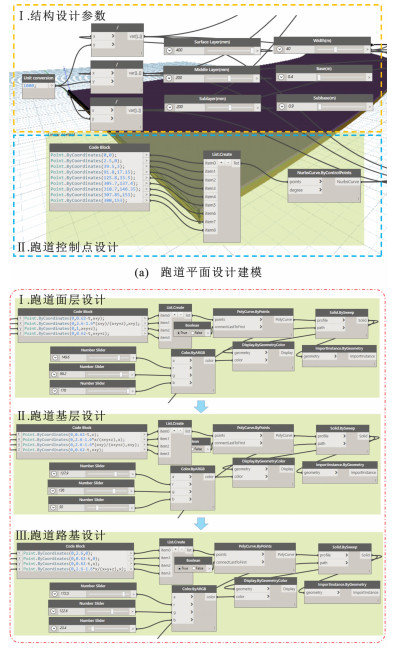

图 14 道基-道面结构参数化BIM建模
Figure 14. Parametric BIM modeling of subgrade-pavement structure

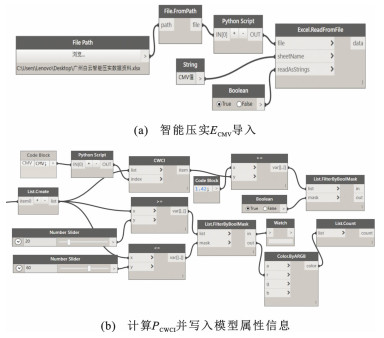

图 15 智能压实数据与BIM模型的融合
Figure 15. Integration of intelligent compaction data and BIM model

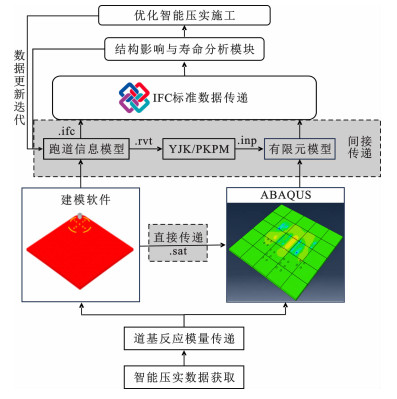

图 16 BIM信息与ABAQUS模型转换流程
Figure 16. Conversion process between BIM information and ABAQUS model
表 1 道基土体的物理力学参数
Table 1. Physical and mechanical parameters of subgrade soil
土性 含水量/% 天然重度/ (kN·m-3) 孔隙比 塑限指数 压缩系数 渗透系数/ (cm·s-1) 粉质黏土 45 18.9 1.52 13.0 1.2 2.5×10-5
下载: 导出CSV
表 2 数值分析模型参数
Table 2. Parameters of numerical analysis model
位置 层厚/ m 弹性模量/ MPa 泊松比 土体黏聚力/kPa 土体内摩擦角/(°) 面层 0.4 37 000 0.15 基层 0.4 500 0.25 道基 20.0 式(14)换算 0.30 30.4 18.8
下载: 导出CSV
表 3 机场跑道BIM模型基础属性定义
Table 3. Definition of basic attributes of airport runway BIM model
属性名称 数据类型 说明 PavementArea IfcAreaMeasure 道面板面积 PavementVolume IfcVolumeMeasure 道面板体积 VerticalSlope IfcPlaneAngleMeasure 纵坡坡度 RunwayLayer IfcCountMeasure 跑道层数 SurfaceCourseSlope IfcPlaneAngleMeasure 面层坡度 SurfaceCourseThickness IfcPositiveLengthMeasure 面层厚度 SurfaceCourseMaterial-Type IfcMaterialSelect 面层材料 BaseCourseThickness IfcPositiveLengthMeasure 基层厚度 BaseCourseMaterialType IfcMaterialSelect 基层材料 CushionThickness IfcPositiveLengthMeasure 垫层厚度 CushionMaterialType IfcMaterialSelect 垫层材料 SubgradeThickness IfcPositiveLengthMeasure 道基厚度 SubgradeMaterialType IfcMaterialSelect 道基材料 ConstructionDate IfcDateTime 铺设时间
下载: 导出CSV
表 4 跑道智能压实评价扩展属性定义
Table 4. Definition of extended attributes for runway intelligent compaction evaluation
属性名称 属性类型 数据类型 说明 CompactionDegree IfcProperty- TableValue IfcCount- Measure 压实度 CompactionMeterValue ECMV SubgradeResilient- Modulus 道基反应模量 CompactionWeakness- AreaRatio 压实薄弱面积比 CompactionWeakness- CompositeIndex PCWCI FlexuralTensileStress 弯拉应力 ServiceLoadingTimes 允许作用次数
下载: 导出CSV
表 5 某机场各类机型起降架次
Table 5. Various types of aircraft take-off and landing sorties at an airport
飞机机型 最大起飞质量/t 年总起降架次 占比/% B737-300 62.8 8 245 23.0 B737-800 79.0 17 490 48.8 A320-200 78.0 6 700 18.7 A380-800 575.0 3 410 9.5
下载: 导出CSV
-
[1] 游庆龙, 凌建明, 袁捷, 等. 适应大型飞机的沥青道面结构有限元模型[J]. 交通运输工程学报, 2012, 12(2): 18-23. doi: 10.19818/j.cnki.1671-1637.2012.02.003 YOU Qing-long, LING Jian-ming, YUAN Jie, et al. Finite element model of flexible airport pavement structure for large aircraft[J]. Journal of Traffic and Transportation Engineering, 2012, 12(2): 18-23. doi: 10.19818/j.cnki.1671-1637.2012.02.003 [2] 白桃, 安奕铭, 金光来, 等. 道路隐性病害三维探地雷达图谱轻量化识别改进算法[J]. 交通运输工程学报, 2025, 25(4): 42-57.BAI Tao, AN YI-ming, JIN Guang-lai, et al. Improved algorithm for lightweight identification of 3D GPR images of hidden road defects[J]. Journal of Traffic and Transportation Engineering, 2025, 25(4): 42-57. [3] 刘东海, 李欣, 刘强, 等. 基于压实实时监测的高填方基础薄弱区快速识别研究[J]. 中国公路学报, 2023, 36(4): 38-47.LIU Dong-hai, LI Xin, LIU Qiang, et al. Fast detection method for low-bearing-capacity area of high-filled subgrade based on real-time compaction monitoring[J]. China Journal of Highway and Transport, 2023, 36(4): 38-47. [4] YUAN D L, LI S Y, REN L W. Evaluation study on the application effect of intelligent construction technology in the construction process[J]. Sustainability, 2024, 16(3): 1071. doi: 10.3390/su16031071 [5] 钱劲松, 庞劲松, 费伦林, 等. 路基智能压实评价指标研究进展综述[J]. 同济大学学报(自然科学版), 2024, 52(3): 388-397.QIAN Jin-song, PANG Jin-song, FEI Lun-lin, et al. A review of research progress on intelligent compaction measurement values for subgrade[J]. Journal of Tongji University (Natural Science), 2024, 52(3): 388-397. [6] 钱劲松, 杨以诚, 凌建明. 路基智能压实的地统计分析与空间均匀性评价[J]. 吉林大学学报(工学版), 2024, 54(10): 2859-2869.QIAN Jin-song, YANG Yi-cheng, LING Jian-ming. Geostatistical analysis and evaluation of subgrade spatial uniformity based on intelligent compaction technology[J]. Journal of Jilin University (Engineering and Technology Edition), 2024, 54(10): 2859-2869. [7] WANG X F, CHENG C, LI J L, et al. Automated monitoring and evaluation of highway subgrade compaction quality using artificial neural networks[J]. Automation in Construction, 2023, 145: 104663. doi: 10.1016/j.autcon.2022.104663 [8] WANG N, MA T, CHEN F, et al. Compaction quality assessment of cement stabilized gravel using intelligent compaction technology: A case study[J]. Construction and Building Materials, 2022, 345: 128100. doi: 10.1016/j.conbuildmat.2022.128100 [9] 张军辉, 刘科, 杨豪, 等. 公路路基智能压实研究综述[J/OL]. 中国公路学报, 2026-02-09. https://link.cnki.net/urlid/61.1313.u.20260206.1611.004 .ZHANG Jun-hui, LIU Ke, YANG Hao et al. A review of the intelligent compaction for highway subgrade[J/OL]. China Journal of Highway and Transport, 2026-02-09.https://link.cnki.net/urlid/61.1313.u.20260206.1611.004 .[10] WANG X, DONG Q, ZHAO X K, et al. Prediction of remaining service life of cement concrete pavement in airfield runway[J]. Road Materials and Pavement Design, 2024, 25(1): 150-167. doi: 10.1080/14680629.2023.2199878 [11] ANJAN KUMAR S, ALDOURI R, NAZARIAN S, et al. Accelerated assessment of quality of compacted geomaterials with intelligent compaction technology[J]. Construction and Building Materials, 2016, 113: 824-834. doi: 10.1016/j.conbuildmat.2016.03.117 [12] MEEHAN C L, CACCIOLA D V, TEHRANI F S, et al. Assessing soil compaction using continuous compaction control and location-specific in situ tests[J]. Automation in Construction, 2017, 73: 31-44. doi: 10.1016/j.autcon.2016.08.017 [13] TANG F L, MA T, GUAN Y S, et al. Parametric modeling and structure verification of asphalt pavement based on BIM-ABAQUS[J]. Automation in Construction, 2020, 111: 103066. doi: 10.1016/j.autcon.2019.103066 [14] 游庆龙, 黄之懿, 马靖莲, 等. 不均匀飞机轮载作用下沥青道面结构力学响应[J]. 振动与冲击, 2023, 42(1): 292-300.YOU Qing-long, HUANG Zhi-yi, MA Jing-lian, et al. Mechanical response of asphalt pavement structure under non-uniform aircraft wheel load[J]. Journal of Vibration and Shock, 2023, 42(1): 292-300. [15] TANG F L, MA T, ZHANG J H, et al. Integrating three-dimensional road design and pavement structure analysis based on BIM[J]. Automation in Construction, 2020, 113: 103152. doi: 10.1016/j.autcon.2020.103152 [16] WEI B L, GUO C C, DENG M Y. An innovation of the Markov probability model for predicting the remaining service life of civil airport rigid pavements[J]. Materials, 2022, 15(17): 6082. doi: 10.3390/ma15176082 [17] 王观虎, 蔡良才, 邵斌, 等. 机场水泥混凝土道面使用寿命的改进灰色预测模型[J]. 交通运输工程学报, 2009, 9(3): 45-48. doi: 10.19818/j.cnki.1671-1637.2009.03.008WANG Guan-hu, CAI Liang-cai, SHAO Bin, et al. Modified gray prediction model of service life for airport cement concrete pavement[J]. Journal of Traffic and Transportation Engineering, 2009, 9(3): 45-48. doi: 10.19818/j.cnki.1671-1637.2009.03.008 [18] WANG Y D, ZHAO J, GAO N, et al. A dynamic evaluation method for the development of intelligent construction technology in the construction field based on structural equation model-system dynamics model[J]. Buildings, 2024, 14(2): 417. doi: 10.3390/buildings14020417 [19] 蔡良才, 王海服, 张罗利, 等. 基于累积损伤的机场道面剩余寿命预测模型[J]. 交通运输工程学报, 2014, 14(4): 1-6.CAI Liang-cai, WANG Hai-fu, ZHANG Luo-li, et al. Prediction model of remaining life for airport pavement based on cumulative damage[J]. Journal of Traffic and Transportation Engineering, 2014, 14(4): 1-6. [20] 王萌, 于群丁, 肖源杰, 等. 透水性基床级配碎石填料宏细观压实特性试验研究[J]. 岩石力学与工程学报, 2022, 41(8): 1701-1716.WANG Meng, YU Qun-ding, XIAO Yuan-jie, et al. Experimental investigation of macro-and meso-scale compaction characteristics of unbound permeable base materials[J]. Chinese Journal of Rock Mechanics and Engineering, 2022, 41(8): 1701-1716. [21] 徐照, 占鑫奎, 张星. BIM技术在装配式建筑预制构件生产阶段的应用[J]. 图学学报, 2018, 39(6): 1148-1155.XU Zhao, ZHAN Xin-kui, ZHANG Xing. Application of BIM technology in the manufacturing stage of precast elements of prefabricated construction[J]. Journal of Graphics, 2018, 39(6): 1148-1155. [22] 徐照, 康蕊, 孙宁. 基于IFC标准的建筑构件点云信息处理方法[J]. 东南大学学报(自然科学版), 2018, 48(6): 1068-1075.XU Zhao, KANG Rui, SUN Ning. IFC-based point-cloud information processing method for structural elements[J]. Journal of Southeast University (Natural Science Edition), 2018, 48(6): 1068-1075. [23] 蔡靖, 王瀚雪, 戴轩, 等. 基于IFC标准的机场道面结构信息模型存储与传递方法[J]. 北京航空航天大学学报, 2024, 50(10): 3042-3053.CAI Jing, WANG Han-xue, DAI Xuan, et al. Storage and transfer method of airport pavement structure information model based on IFC standard[J]. Journal of Beijing University of Aeronautics and Astronautics, 2024, 50(10): 3042-3053. [24] 罗丹, 黄晓琴, 冷费贤, 等. 数字孪生在交通基础设施智能建造中的应用与挑战[J]. 交通运输工程学报, 2025, 25(3): 33-64.LUO Dan, HUANG Xiao-qin, LENG Fei-xian, et al. Applications and challenges of digital twin in intelligent construction of transportation infrastructure[J]. Journal of Traffic and Transportation Engineering, 2025, 25(3): 33-64. [25] 戴轩, 冯蒙, 蔡靖, 等. 机场刚性道面裂缝发展数字孪生模型及其应用[J/OL]. 北京航空航天大学学报, 2026-01-05. https://doi.org/10.13700/j.bh.1001-5965.2025.0704 .DAI Xuan, FENG Meng, CAI Jing, et al. Digital twin model of cracks development on airport rigid pavement and its application[J/OL]. Journal of Beijing University of Aeronautics and Astronautics, 2026-01-05.https://doi.org/10.13700/j.bh.1001-5965.2025.0704 .[26] YAN Y, NI L, SUN L J, et al. Digital twin enabling technologies for advancing road engineering and lifecycle applications[J]. Engineering, 2025, 44(1): 184-206. [27] MENG W, ZHANG H, AI Q S, et al. CBR-RBR fusion based parametric rapid construction method of bridge BIM model[J]. Advanced Engineering Informatics, 2023, 57: 102086. doi: 10.1016/j.aei.2023.102086 [28] BARAZZETTI L, BANFI F, BRUMANA R, et al. Creation of parametric BIM objects from point clouds using nurbs[J]. The Photogrammetric Record, 2015, 30(152): 339-362. doi: 10.1111/phor.12122 [29] SONG H H, YANG G, LI H J, et al. Digital twin enhanced BIM to shape full life cycle digital transformation for bridge engineering[J]. Automation in Construction, 2023, 147: 104736. doi: 10.1016/j.autcon.2022.104736 [30] LIU P. Mountain rainfall estimation and BIM technology site safety management based on internet of things[J]. Mobile Information Systems, 2021, 2021(1): 1017200. [31] XU Z, ZHANG L, LI H, et al. Combining IFC and 3D tiles to create 3D visualization for building information modeling[J]. Automation in Construction, 2020, 109: 102995. doi: 10.1016/j.autcon.2019.102995 [32] 徐照, 徐夏炎, 李启明, 等. 基于WebGL与IFC的建筑信息模型可视化分析方法[J]. 东南大学学报(自然科学版), 2016, 46(2): 444-449.XU Zhao, XU Xia-yan, LI Qi-ming, et al. Combining WebGL and IFC to create 3D visualization for building information models[J]. Journal of Southeast University (Natural Science Edition), 2016, 46(2): 444-449. [33] 张建平, 余芳强, 李丁. 面向建筑全生命期的集成BIM建模技术研究[J]. 土木建筑工程信息技术, 2012, 4(1): 6-14.ZHANG Jian-ping, YU Fang-qiang, LI Ding. A modeling technology of integrated BIM for building lifecycle[J]. Journal of Information Technology in Civil Engineering and Architecture, 2012, 4(1): 6-14. [34] LIU D H, LIN M, LI S. Real-time quality monitoring and control of highway compaction[J]. Automation in Construction, 2016, 62: 114-123. doi: 10.1016/j.autcon.2015.11.007 [35] 陈利满, 钟立楠. 毗邻连通和及环面作用[J]. 南开大学学报(自然科学版), 2017, 50(5): 50-55.CHEN Li-man, ZHONG Li-nan. Adjacent connected sums and toms actions[J]. Acta Scientiarum Naturalium Universitatis Nankaiensis (Natural Science Edition), 2017, 50(5): 50-55. [36] LI T G, KONG L W, LIU B H. The California bearing ratio and pore structure characteristics of weakly expansive soil in frozen areas[J]. Applied Sciences, 2020, 10(21): 7576. doi: 10.3390/app10217576 [37] POWELL W D, POTTER J F, MAYHEW H C, et al. The structural design of bituminous roads: 1132[R]. Crow-thorne: Transport and Road Research Laboratory, 1984. [38] 姚炳卿, 王威龙. 机场刚性道面当量单轮荷载的计算原理及其图表[J]. 岩土工程学报, 1989, 11(2): 43-53.YAO Bing-qing, WANG Wei-long. The calculating principles and charts of equivalent single wheel load for airport rigid pavements[J]. Chinese Journal of Geotechnical Engineering, 1989, 11(2): 43-53. [39] 戴轩, 蔡靖, 李香香, 等. 脱空尺寸对机场刚性道面的影响及其使用寿命分析[J]. 中外公路, 2022, 42(6): 47-52.DAI Xuan, CAI Jing, LI Xiang-xiang, et al. Influence of void size beneath airport concrete pavement and pavement life analysis[J]. Journal of China & Foreign Highway, 2022, 42(6): 47-52. [40] WANG Q, DAVIS J. Airport pavement groove identification and analysis at NAPTF[J]. Advanced Materials Research, 2013, 723: 1003-1010. doi: 10.4028/www.scientific.net/AMR.723.1003 -
