Characteristics of aircraft runway veer-off behavior due to coupled action of crosswind and uneven water accumulation on pavement
Article Text (Baidu Translation)
-

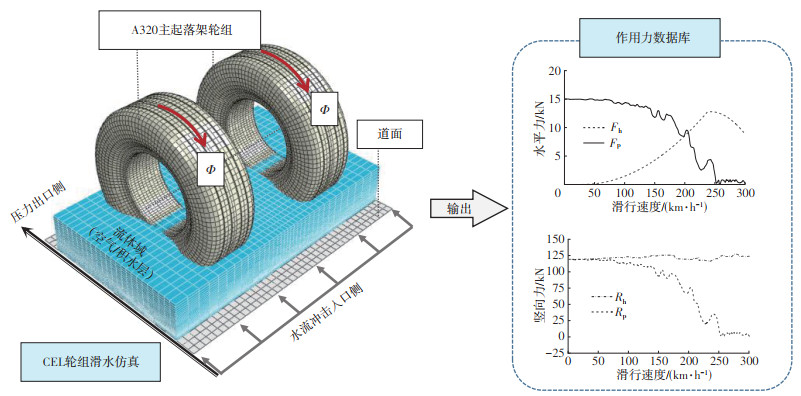

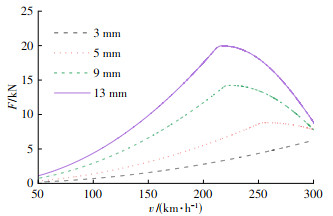

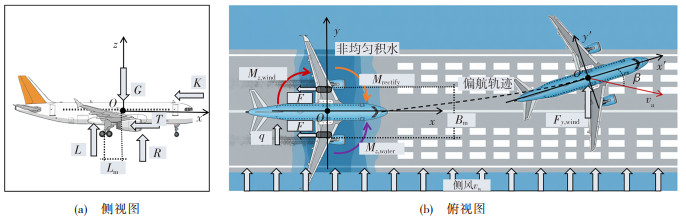

摘要: 建立了侧风与道面非均匀积水耦合动力学模型，分析了侧风气动力矩、积水不平衡阻力矩与前轮纠偏力矩之间的作用关系；构建了基于欧拉-拉格朗日耦合算法与机械系统动力学自动分析的联合仿真体系，实现了从局部轮组滑水作用力识别到整机滑跑偏出响应模拟的跨尺度传递；研究了积水厚度差异、侧风速度及侧风方向对飞机质心轨迹、侧向偏移量和机身偏转角的影响规律，提出了以18.7 m质心侧向偏移量作为A320飞机在45 m宽跑道上发生偏出跑道的安全判据。研究结果表明：在240 km·h-1速度接地时，10 mm的积水厚度差可造成16 kN的摩阻力差异；6 mm积水厚度差可造成11.6 m最终侧向偏移；道面湿滑放大了侧风的偏出效应，相同侧风条件下湿滑跑道飞机最大偏转角约为干跑道的2.8倍；在侧风与非均匀积水共同作用下，飞机侧向偏移显著增加，并可能在滑跑过程中突破跑道安全限值；非均匀积水通过左右主起落架纵向阻力差诱发偏转力矩，是飞机偏出跑道的重要内在驱动力；侧风主要通过气动侧向力和偏航力矩改变飞机横向运动状态，并在湿滑道面条件下进一步放大偏出效应；当积水力矩与侧风力矩方向相同时，飞机偏转姿态显著增大，当二者作用力方向同向叠加时，飞机轨迹偏离速率明显提高。研究结果可为跑道积水监测、侧风运行限制及着陆滑跑偏出风险评估提供理论依据和数据支撑。Abstract: A coupled dynamics model for aircraft runway veer-off under the combined action of crosswind and uneven water accumulation on pavement was established. The relationship among the aerodynamic moment induced by crosswind, the unbalanced drag moment induced by water accumulation, and the correcting moment of the nose wheel was analyzed. A co-simulation system based on the coupled Eulerian-Lagrangian (CEL) algorithm and Automatic Dynamic Analysis of Mechanical Systems (ADAMS) was constructed. The cross-scale transfer from local wheel-set hydroplaning force identification to full-aircraft landing-roll veer-off response simulation was achieved. The effects of water-depth difference, crosswind speed, and crosswind direction on the center-of-mass trajectory, lateral offset, and yaw angle of the aircraft were investigated. A safety criterion was proposed, in which a center-of-mass lateral offset of 18.7 m was taken as the veer-off threshold for an A320 aircraft on a 45 m wide runway. The results indicate that a water-depth difference of 10 mm causes a friction resistance difference of 16 kN at a touchdown speed of 240 km·h-1. A water-depth difference of 6 mm causes a final lateral offset of 11.6 m. Wet pavement amplifies the veer-off effect of crosswind. Under the same crosswind conditions, the maximum yaw angle of the aircraft on a wet runway is about 2.8 times that on a dry runway. Under the combined action of crosswind and uneven water accumulation, the lateral offset of the aircraft increases significantly, and it may exceed the runway safety limit during the landing roll. Uneven water accumulation induces a yawing moment through the longitudinal resistance difference between the left and right main landing gears, and it is an important internal driving force for aircraft veer-off. Crosswind mainly changes the lateral motion state of the aircraft through aerodynamic side force and yawing moment, and it further amplifies the veer-off effect under wet pavement conditions. When the water-induced moment and the crosswind-induced moment have the same direction, the aircraft yaw attitude increases significantly. When the two forces act in the same direction, the trajectory deviation rate of the aircraft increases obviously. The results provide a theoretical basis and data support for runway water accumulation monitoring, crosswind operation limitation, and landing-roll veer-off risk assessment.
-
Key words:
- airport engineering /
- tire hydroplaning /
- multibody dynamics /
- runway veer-off /
- crosswind /
- uneven water accumulation
-

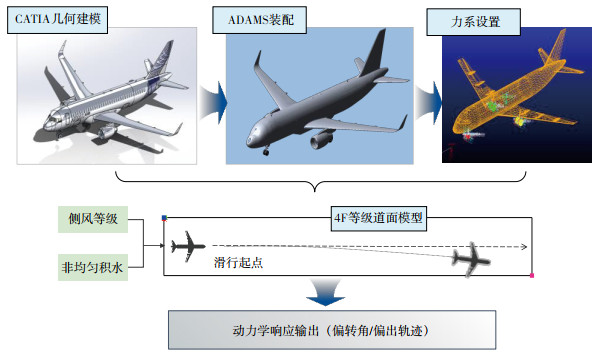

图 3 A320飞机着陆滑跑多体动力学模型
Figure 3. Multi-body dynamics model for landing roll of A320 aircraft

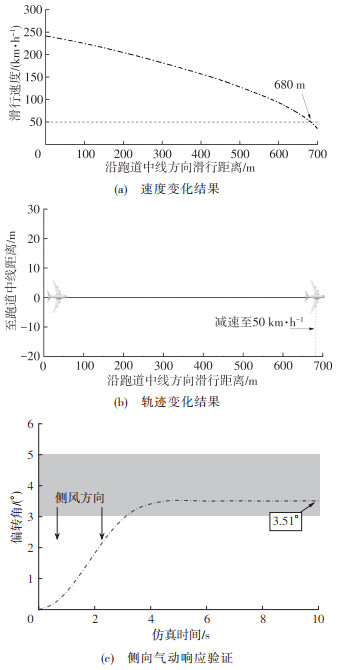

表 1 轮组滑水仿真模型参数
Table 1. Wheel set hydroplaning simulation model parameters
类别 指标参数 数值 类别 指标参数 数值 轮胎规格 轮胎外径/mm 1 168 轮毂参数 轮毂密度/（kg‧m-3） 7 800 轮胎内径/mm 508 弹性模量/MPa 2×104 轮胎宽度/mm 432 流体参数 流体初始密度/（kg‧m-3） 1 000 轮胎胎压/kPa 1 140 动力黏度/（mPa‧s） 1.0×103 轮胎轴载/kN 153.2 积水范围/m3 1.5×1.5×（0.3+h），h为积水深度 沟槽深度/mm 17 道面材料 密度/（kg‧m-3） 7 850 沟槽数量 4 弹性模量/MPa 3.5×104 沟槽宽度/mm 20 泊松比 0.15
下载: 导出CSV
表 2 ADAMS仿真参数
Table 2. ADAMS simulation parameters
参数 数值 参数 数值 机长/m 37.57 垂直刚度/（kN·m-1） 2 400 翼展/m 35.80 垂直阻尼/（N·s·m-1） 28 主起落架横向间距/m 7.59 纵向滑移刚度/（N·m-1） 2 000 机身底部距地面/m 1.72 机翼面积/m2 122.4 主起落架分配系数 0.95 侧风风速/（m·s-1） 0~17 单侧轮组积水厚度/mm 3~13 受风面面积/m2 31 积水厚度差/mm 0~10 侧风合力/kN 0~17.67 等效扭转刚度/（N·m·rad-1） 3.5×105 旋转阻尼系数/（N·m·s·rad-1） 800
下载: 导出CSV
表 3 仿真工况
Table 3. Simulated operating conditions

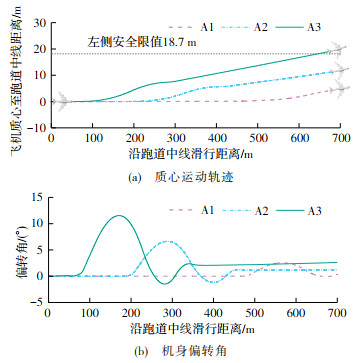

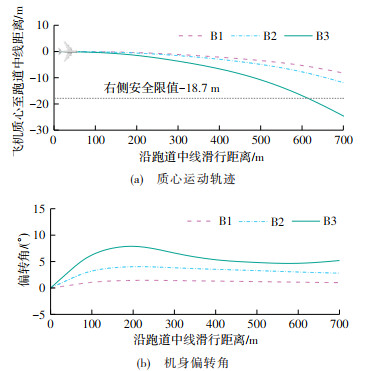

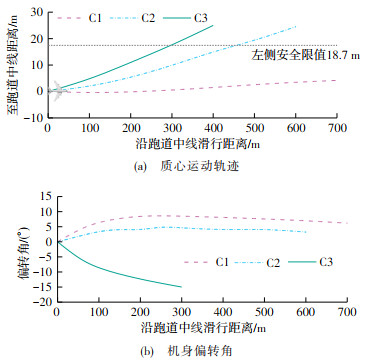

工况组别 编号 左侧积水深度/mm 右侧积水深度/mm 积水厚度差异Δh/mm 侧风速度vw/（m·s-1） A组：积水影响 A1 5 3 2 0 A2 9 3 6 0 A3 13 3 10 0 B组：侧风影响 B1 0 0 0 -5 B2 3 3 0 -5 B3 0 0 0 -10 C组：耦合影响 C1 9 3 6 -5 C2 9 3 6 5 C3 13 3 10 10
下载: 导出CSV
-
[1] 蔡爵威, 赵鸿铎, 钱鑫, 等. 采用实测数据实时修正的机场跑道水膜厚度面域分布预估方法[J]. 交通运输工程学报, 2023, 23(1): 105-114. doi: 10.19818/j.cnki.1671-1637.2023.01.008 CAI Jue-wei, ZHAO Hong-duo, QIAN Xin, et al. Estimation method for area distribution of water film thickness on airport runway modified by measured data in real time[J]. Journal of Traffic and Transportation Engineering, 2023, 23(1): 105-114. doi: 10.19818/j.cnki.1671-1637.2023.01.008 [2] 陈正磊, 种小雷, 刘超佳, 等. 基于多智能体建模和蒙特卡洛仿真的跑道容量评估[J]. 交通运输工程学报, 2023, 23(6): 244-256. doi: 10.19818/j.cnki.1671-1637.2023.06.016 CHEN Zheng-lei, CHONG Xiao-lei, LIU Chao-jia, et al. Runway capacity evaluation based on multi-agent modeling and Monte Carlo simulation[J]. Journal of Traffic and Transportation Engineering, 2023, 23(6): 244-256. doi: 10.19818/j.cnki.1671-1637.2023.06.016 [3] 汤新民, 顾俊伟, 张康, 等. 无人驾驶航空器自主探测与避让技术研究综述[J]. 交通运输工程学报, 2026, 26(3): 1-24. doi: 10.19818/j.cnki.1671-1637.2026.085 TANG Xin-min, GU Jun-wei, ZHANG Kang, et al. Research review on autonomous detect and avoid technologies for unmanned aerial vehicles[J]. Journal of Traffic and Transportation Engineering, 2026, 26(3): 1-24. doi: 10.19818/j.cnki.1671-1637.2026.085 [4] ZHOU Z Y, CHONG X L, CHEN Z L, et al. A long sequence time-series forecasting method for early warning of long landing risks with QAR flight data [J]. Aerospace, 2025, 12(8): 744. doi: 10.3390/aerospace12080744 [5] 周则圆, 种小雷, 陈正磊, 等. 基于多维联系云的飞机冲偏出跑道集对风险评价模型[J/OL]. 北京航空航天大学学报, 2025-09-22. https://doi.org/10.13700/j.bh.1001-5965.2025.0388 .ZHOU Ze-yuan, CHONG Xiao-lei, CHEN Zheng-lei, et al. Risk assessment model for runway excursions of aircraft based on set pair analysis and multi-dimensional relational cloud[J/OL]. Journal of Beijing University of Aeronautics and Astronautics, 2025-09-22.https://doi.org/10.13700/j.bh.1001-5965.2025.0388 .[6] FWA T F. Pavement skid resistance properties for safe aircraft operations[J]. Journal of Road Engineering, 2024, 4(4): 361-385. doi: 10.1016/j.jreng.2024.11.002 [7] 赵丁仪, 齐心歌, 汪磊. 冲偏出跑道事件风险评估研究进展[J]. 航空工程进展, 2025, 16(1): 1-8.ZHAO Ding-yi, QI Xin-ge, WANG Lei. Research progress analysis on risk assessment of runway excursion [J]. Advances in Aeronautical Science and Engineering, 2025, 16 (1): 1-8. [8] FRICKE H, SCHLOSSER M, GARCIA M A, et al. Embedding aircraft system modeling to ATM safety assessment techniques[J]. Transportation Research Interdisciplinary Perspectives, 2019, 3: 100026. doi: 10.1016/j.trip.2019.100026 [9] AIRPLANES B C. Statistical summary of commercial jet airplane accidents worldwide operations 1959-2022[R]. Seattle: The Boeing Company, 2023: 4-10. [10] DAUGHERTY R H, STUBBS S M. Measurements of flow rate and trajectory of aircraft tire-generated water spray: NASA TP-2718[R]. Washington DC: National Aeronautics and Space Administration, 1987: 7-8. [11] FWA T F, ONG G P. Wet-pavement hydroplaning risk and skid resistance: Analysis[J]. Journal of Transportation Engineering, 2008, 134(5): 182-190. doi: 10.1061/(ASCE)0733-947X(2008)134:5(182) [12] TANG T C, ANUPAM K, KASBERGEN C, et al. A finite element study of rain intensity on skid resistance for permeable asphalt concrete mixes[J]. Construction and Building Materials, 2019, 220: 464-475. doi: 10.1016/j.conbuildmat.2019.05.185 [13] 宗辉杭, 李岳, 蔡靖, 等. 基于飞机滑水安全的沥青道面积水评价指标[J]. 北京航空航天大学学报, 2024, 50(3): 765-773.ZONG Hui-hang, LI Yue, CAI Jing, et al. Evaluation index of accumulated water-film on asphalt pavement considering safety of aircraft hydroplaning[J]. Journal of Beijing University of Aeronautics and Astronautics, 2024, 50(3): 765-773. [14] 李少杰. 考虑不平衡摩阻的湿滑污染道面飞机着陆安全问题研究[D]. 天津: 中国民航大学, 2020: 26.LI Shao-jie. Study on the safety problem of aircraft in landing on wet-pollution pavement considering unbalanced friction[D]. Tianjin: Civil Aviation University of China, 2020: 26. [15] 李岳, 张耀华, 蔡靖, 等. 横向非均匀积水对飞机滑水偏出跑道行为影响[J]. 北京航空航天大学学报, 2026, 52(3): 698-705.LI Yue, ZHANG Yao-hua, CAI Jing, et al. Influence on veer-off behavior of aircraft hydroplaning due to transverse uneven water accumulation[J]. Journal of Beijing University of Aeronautics and Astronautics, 2026, 52(3): 698-705. [16] SLIHTA M, LAZAREVA I, SESTAKOVS V. Evaluation of the dynamic characteristics of aircraft during landing in crosswinds[J]. Transport and Aerospace Engineering, 2015, 2(1): 27-35. doi: 10.1515/tae-2015-0004 [17] 刘海良, 王立新. 基于数字虚拟飞行的民机侧风着陆地面航向操稳特性评估[J]. 北京航空航天大学学报, 2018, 44(3): 516-525.LIU Hai-liang, WANG Li-xin. Evaluation of directional ground stability and control characteristics in crosswind landing for civil airplane based on digital virtual flight[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(3): 516-525. [18] 陆军, 吴国强, 吴叶斌, 等. 飞机降落过程自适应控制仿真研究[J]. 计算机仿真, 2011, 28(4): 53-57.LU Jun, WU Guo-qiang, WU Ye-bin, et al. Simulation based on optimized CMAC-PID control in process of aircraft landing[J]. Computer Simulation, 2011, 28(4): 53-57. [19] LUNGU R, LUNGU M. Control of the aircraft lateral-directional motion during landing using the H-INF control and the dynamic inversion[J]. Proceedings of the Romanian Academy-Series A: Mathematics, Physics, Technical Sciences, Information Science, 2015, 16: 547-555. [20] 李岳, 宗辉杭, 蔡靖, 等. 飞机轮组滑水行为与道面积水附加阻力[J]. 北京航空航天大学学报, 2023, 49(5): 1099-1107.LI Yue, ZONG Hui-hang, CAI Jing, et al. Hydroplaning behavior of aircraft wheel group and additional resistance due to accumulated water on pavement [J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(5): 1099-1107. [21] 徐长群, 陶超. 大型客机积水跑道起降附加阻力评估[J]. 民用飞机设计与研究, 2018(1): 98-103.XU Chang-qun, TAO Chao. Additional drag assessment on standing water runways for large civil aircraft[J]. Civil Aircraft Design and Research, 2018(1): 98-103. [22] 马大卫, 聂宏, 张明. 民用飞机侧风影响下的纠偏研究[J]. 飞行力学, 2013, 31(1): 5-9, 23.MA Da-wei, NIE Hong, ZHANG Ming. The corrective research of the civil aircraft under the influence of the crosswind[J]. Flight Dynamics, 2013, 31(1): 5-9, 23. [23] 刘芳兵. 湿滑跑道飞机侧风着陆滑行安全研究[D]. 天津: 中国民航大学, 2020: 78-79.LIU Fang-bing. Study on the safety of aircraft landing and taxiing in crosswind on wet-pavement[D]. Tianjin: Civil Aviation University of China, 2020: 78-79. [24] 蔡靖, 李岳, 宗一鸣. 湿滑道面飞机轮胎临界滑水速度计算方法比较[J]. 航空学报, 2017, 38(7): 236-247.CAI Jing, LI Yue, ZONG Yi-ming. Comparison of prediction methods for critical hydroplaning speed of aircraft tire on wet pavement[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38(7): 236-247. [25] 李岳, 蔡靖, 宗一鸣. 湿滑道面飞机轮胎临界滑水速度数值仿真[J]. 交通运输工程学报, 2017, 17(5): 90-101.LI Yue, CAI Jing, ZONG Yi-ming. Numerical simulation of critical hydroplaning speed of aircraft tire under wet pavement condition[J]. Journal of Traffic and Transportation Engineering, 2017, 17(5): 90-101. [26] 李岳, 张耀华, 蔡靖, 等. 道面分区积水条件下飞机着陆滑行规律[J/OL]. 北京航空航天大学学报, 2024-12-30. https://doi.org/10.13700/j.bh.1001-5965.2024.0702 .LI Yue, ZHANG Yao-hua, CAI Jing, et al. Taxiing law of aircraft landing on pavement under condition of regional water accumulation[J/OL]. Journal of Beijing University of Aeronautics and Astronautics, 2024-12-30.https://doi.org/10.13700/j.bh.1001-5965.2024.0702 .[27] 王裕, 刘卫, 张嘉振. 面向增材制造技术的民用飞机典型铰链结构拓扑优化设计[C]//中国航空学会. 第八届中国航空学会青年科技论坛论文集. 北京: 中国航空学会, 2018: 541-546.WANG Yu, LIU Wei, ZHANG Jia-zhen. Topology optimization design of typical hinge for civil aircraft based on additive manufacturing technology[C]//Chinese Society of Aeronautics and Astronautics. Proceedings of the 8th Youth Science and Technology Forum of the Chinese Society of Aeronautics and Astronautics. Beijing: Chinese Society of Aeronautics and Astronautics, 2018: 541-546. [28] 侯志礼, 王钢林. 某无人机着陆滑跑动态仿真分析[J]. 飞机设计, 2011, 31(5): 9-11.HOU Zhi-li, WANG Gang-lin. Dynamic simulation of landing and rolling for a certain UAV[J]. Aircraft Design, 2011, 31(5): 9-11. [29] 马涛, 吴俊, 唐樊龙, 等. 基于多源数据与大模型的无人机巡航风险识别技术[J]. 交通运输工程学报, 2026, 26(3): 75-88. doi: 10.19818/j.cnki.1671-1637.2026.036 MA Tao, WU Jun, TANG Fan-long, et al. Unmanned aerial vehicle cruise risk identification technology based on multisource data and large models[J]. Journal of Traffic and Transportation Engineering, 2026, 26(3): 75-88. doi: 10.19818/j.cnki.1671-1637.2026.036 [30] 黄敬杰, 张鑫, 孟超, 等. 反推力装置对民航飞机减速性能影响[J]. 航空动力学报, 2023, 38(3): 728-734.HUANG Jing-jie, ZHANG Xin, MENG Chao, et al. Effect of thrust reverser on the deceleration performance of civil aircraft[J]. Journal of Aerospace Power, 2023, 38(3): 728-734. [31] 唐铁桥, 曹峰, 王芃, 等. 飞机可持续滑行技术理论进展与应用挑战[J]. 交通运输工程学报, 2026, 26(1): 8-30.TANG Tie-qiao, CAO Feng, WANG Peng, et al. Theoretical advances and application challenges of sustainable aircraft taxiing technology[J]. Journal of Traffic and Transportation Engineering, 2026, 26(1): 8-30. -
